Vayu Board 2023

Vayu Board

• All-round dedicated wing foil board.
• Wide platform for extra stability during knee starts.
• EASY to get planning on the foil.
• EASY touchdown recovery.

---

The board was built to make wing foiling as easy as possible.

Designed for performance and early take-offs with maximum volume in the shortest possible board size. The overall board concept allows you to get on the foil easily once you’ve reached lift-off speed.

The wide overall width makes it easy to knee-start even if the water is choppy.

The centered volume makes up for a very agile feel when foiling while being easy to control. it’s precisely-balanced volume distribution allows you to stay in one stance position no matter if you are in displacement mode or foiling.

---

Key Features

Compact Outline + High Volume

The shorter the board the less swing weight which makes it more agile and and manoeuvrable when foiling. Less surface area means more aerodynamic. The extra nose and tail volume means extra stability when not foiling. The volume in the nose helps recovery when coming off the foil or nose-diving. A shorter board is much more effective for pumping as well.

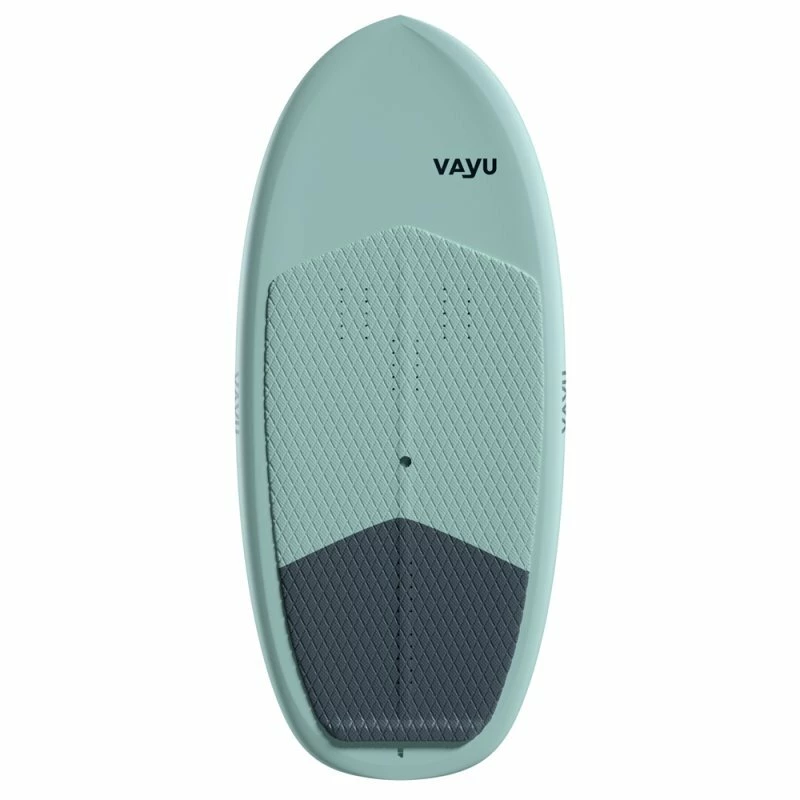

Concave Deck

The concave in the deck helps to position the rider lower and makes the board more stable to ride. It increases the volume in rails making it a more balanced and stable shape. It also helps to keep the board under you while knee starting. In turns it helps you to engage the toe side with your back foot.

Centerline Arch-Bar and Tail Kick Pad

The longitudinal arch bar serves as a tactile stance reference for precise and fast foot placement which is crucial when foiling. Additionally, it makes for a better hold while using footstraps. A Tail pad and a front pad serve as a visual marker for your feet making it easier to find your stance. A tail kick pad in case you are riding strapless.

Foot Strap Inserts

Multiple foot strap options with a Y-strap setup allow you to ride it either with a double strap in the front or in surf stance with a centered front strap.

---

Technologie

Epoxy construction

A light yet durable epoxy composite construction. Glass fiber layup around an EPS core wrapped with Multi-step vacuum process. The foil track mounts and foot plugs are inserted in high-density closed cell PVC foam with additional reinforcement patches in key areas such as boxes, centre spine. A full lightweight paulownia wood patch layer in the entire stance area for greater impact resistance and rigidity. It comes with a hand sanded matte and high gloss finish.

Board Vent

The Vent allows air to pass in and out of the board, while preventing water from entering. Hassle free since it is factory-fitted and does not require any adjustment. No need to open and close. High volume sandwich boards are affected by extreme temperature changes. To avoid damage a two-way vent is installed in the deck. Still avoid exposing your board to extreme heat and sunlight.

---
